Rock Wool Pipe for Power Plant

Rock wool pipe for power plant - we are professionally committed to pipe insulation

Product Overview

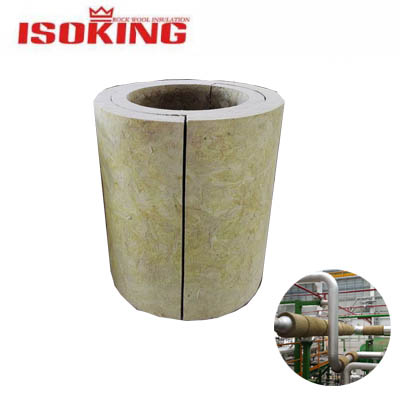

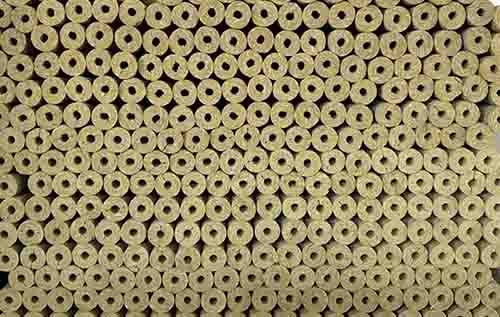

Rock wool pipe for power plant is a tubular insulation material made of basalt, Baiyun Mountain, etc., which is melted into fibers at high temperature and molded into shape. It is used in high-energy consumption places such as steam pipes, thermal pipes, and waste heat recovery systems in power plants to help power plants achieve the dual goals of energy conservation and emission reduction and safe production.

Parameters

1. Low thermal conductivity (0.032-0.036 W/(m·K)), which can reduce heat loss.

2. Applicable temperature: -196℃～700℃

3. Density range: 800-200kg/m³

4. Hydrophobicity: ≥98%

5. Slag ball content: ≤3%

6. Fire rating: A1 non-flammable

8. Length: 1m

9. Inner diameter: 22mm-914mm

10. Thickness: 25mm-200mm

Application

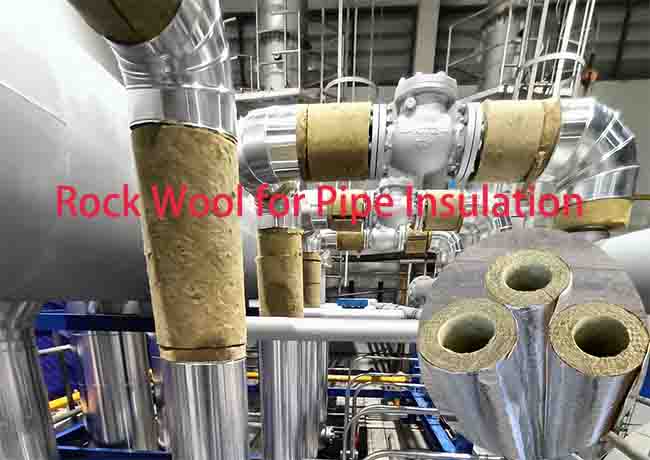

Insulation of steam pipes, waste heat boilers and other equipment in power plants

Flue insulation

Insulation of steam turbines and heat exchangers

Sound insulation and noise reduction in machine rooms
